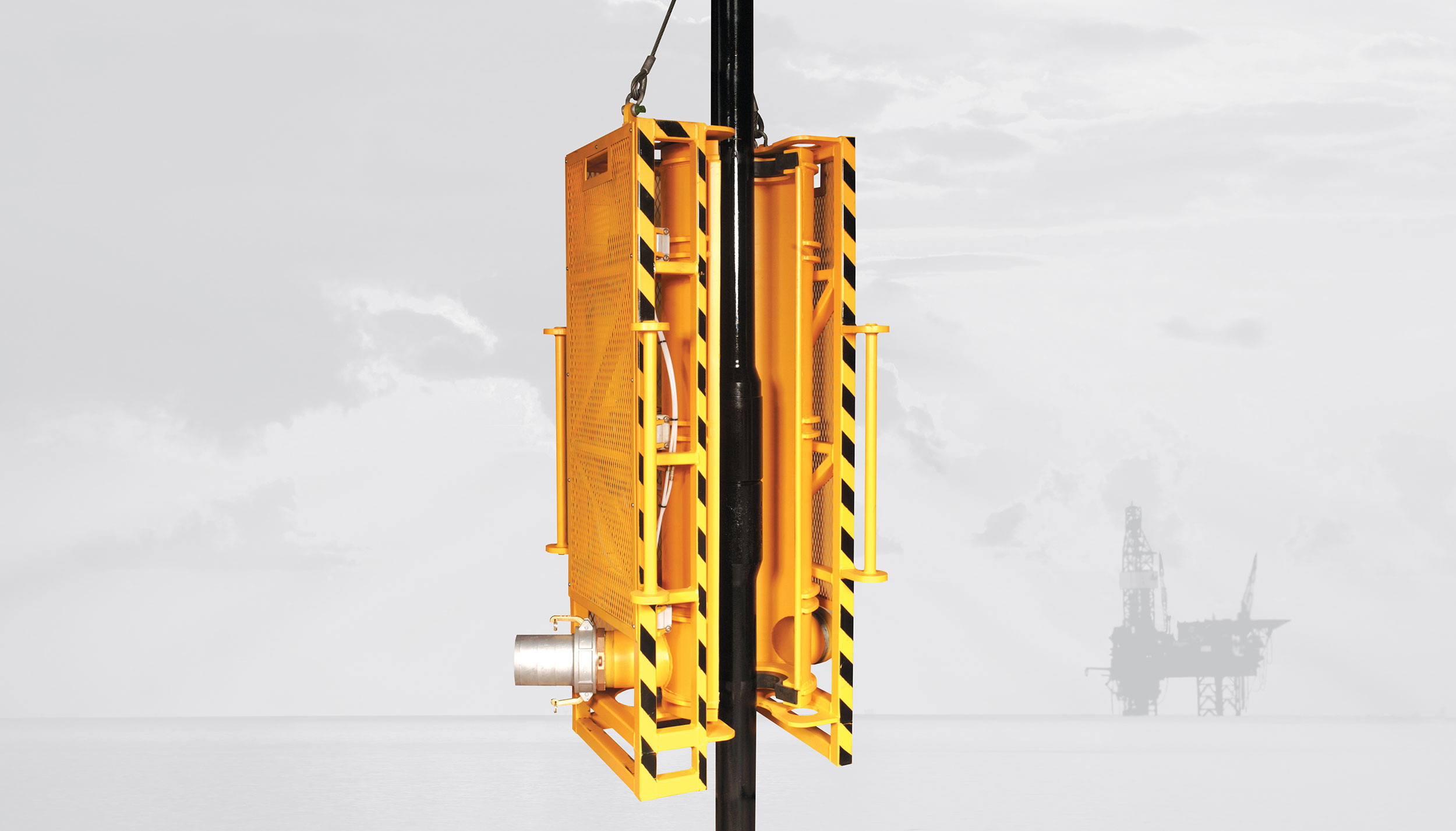

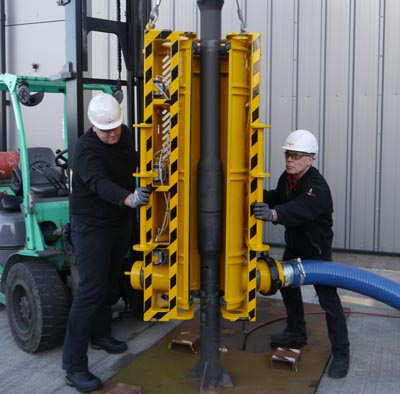

Sub-drill's MS-V™ Mud Bucket / saver is an essential rig floor equipment used when drill pipe is being pulled out of the well bore full of drilling mud.
Outer Frame Design Protects Working Parts

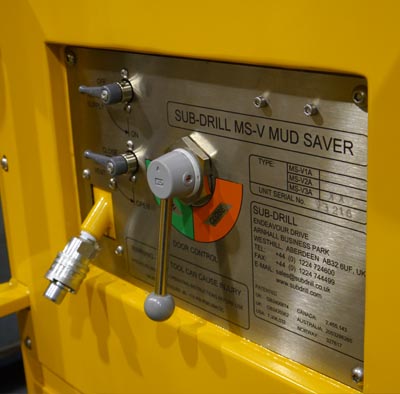

The outer frame design of our MS-V™ Mud Bucket protects working parts from collision damage, and avoids crew working too close to the pipe and mud discharge area, protecting the crew from pinch points. The design also incorporates a closing mechanism that produces the strongest pneumatic closing force on the market.
Low Maintenance & Operational Simplicity
Sub-drill’s MS-V™ Mud Bucket is the mud saver bucket of choice globally for operators, drilling contractors and oil-feild rental companies. Its unique patented design provides unrivaled safety features and benefits, low maintenance operation and effective mud containment while saving valuable drilling mud.
Features & Benefits
• Unique Patented Design: The pneumatic Mud Bucket incorporates an outer frame and a highly effective closing mechanism that produces the strongest pneumatic closing force on the market without requiring a latch.
• Quick Change Seals: Designed for easy maintenance, seals can be replaced in under two minutes when pipe sizes change.
• Long Service Life: The sturdy outer frame protects working components from damage, ensuring durability and longevity in demanding environments.
• Effective Containment: Provides reliable mud containment on the drill floor, saving and recycling drilling fluids to reduce costs and environmental impact.
• Spill Prevention: Reduces the risk of spills, leading to less crew clean-up time and decreased wash water disposal volumes.
• Operational Efficiency: Accelerates operations during wet trips, saving both time and money.
Sub-drill's MS-V™ Mud Bucket Specification
Models - MS-V2a / MS-V3A
MS-V2A: WEIGHT 335KG / 737Lbs
| Height (mm-in) | Width (mm-in) | Depth (mm-in) |
| 1530 – 60 | 605 – 24 | 560 – 22 |
MS-V3A: WEIGHT 460KG / 1020Lbs
| Height (mm-in) | Width (mm-in) | Depth (mm-in) |
| 1762 – 69 | 670 – 26 | 640 – 25 |
