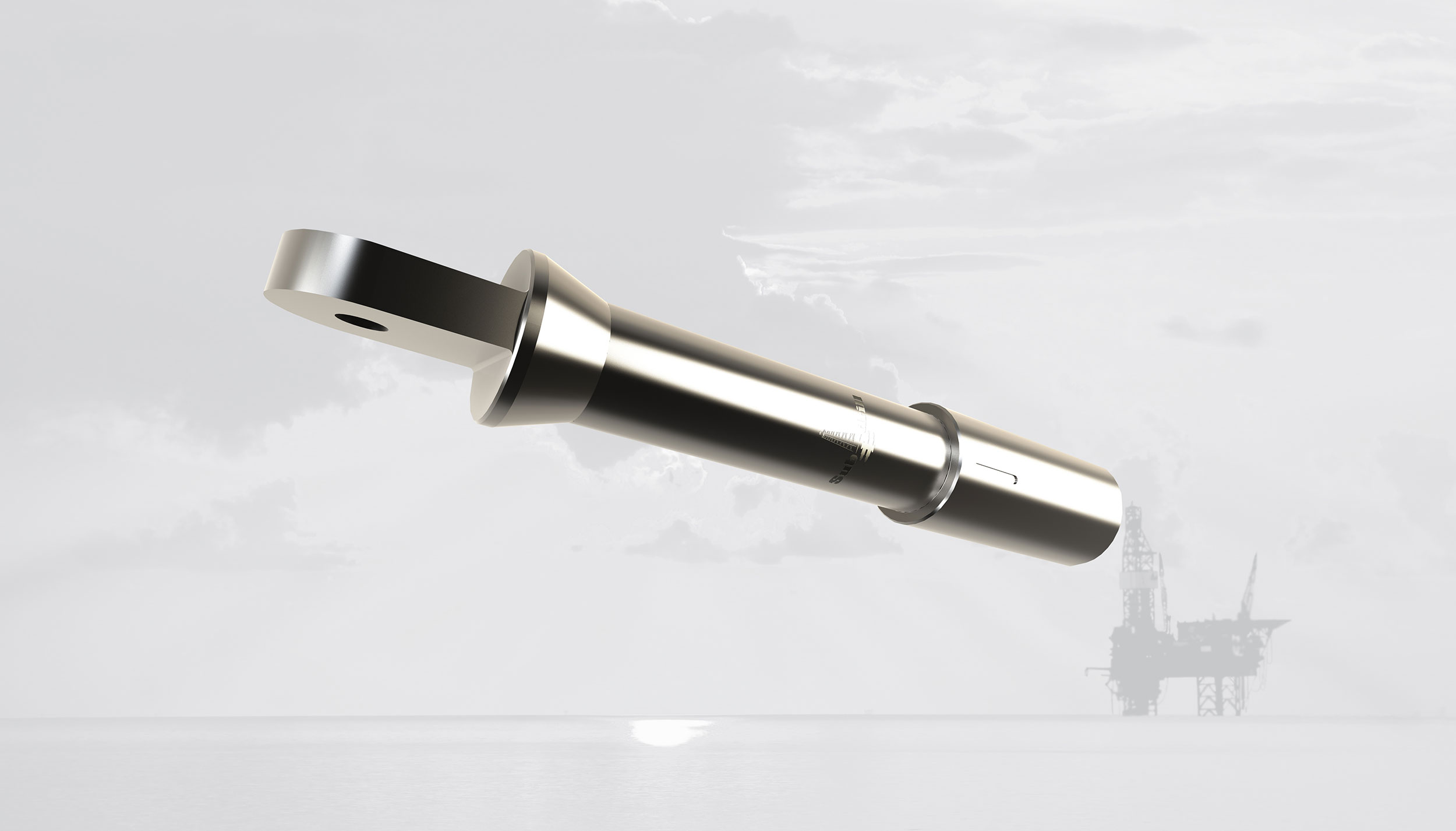

Pad-Eye Subs

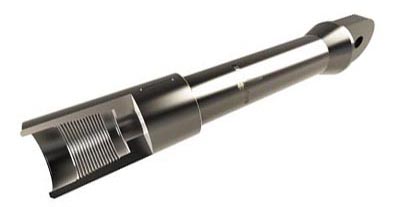

Pad-Eye Handling Subs are heavy-duty cylindrical tools designed, engineered, and manufactured by Sub-drill for use in oil and gas drilling operations. They provide a secure and certified attachment point for lifting specialised downhole tools or heavy assemblies. These subs function by being screwed into the drill string, allowing a crane or other lifting equipment to safely raise or lower tools and equipment into or out of the Wellbore.
Sub-drill’s Pad-Eye Handling Subs are engineered for reliability and strength, manufactured from a single piece of high-quality steel to ensure maximum durability.
These subs are innovative tools specifically designed for use at the bottom of the drill string or top drive in oil and gas drilling operations. They play a crucial role in facilitating the precise lowering and maneuvering of tools or assemblies into place, which is essential for ensuring the efficiency and safety of drilling operations. Their robust construction ensures that they can withstand the harsh conditions often encountered in downhole environments.
Durable Construction / Certified Load Ratings / API-Compliant Connections / Enhanced Efficiency / Protection / Eliminates Lifting Caps / Operational Flexibility
Versatile Safe Working Loads
Available in a diverse range of Safe Working Loads, these Pad-Eye Handling Subs cater to various application needs, with capacities ranging from 3Te to 120Te. For projects requiring even higher capacities, larger SWLs can be provided upon request.
This versatility allows operators to select the most suitable lift subs for their specific operational demands, ensuring optimal performance and safety.

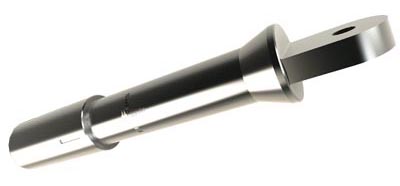

Custom Design and Connection Options
In terms of design, Sub-drill offers options that include a Slick design or a configuration with a Slip and Elevator Recess. Customers can also choose between angled or square shoulders, providing additional flexibility based on handling preferences. Furthermore, we understand that each operation may have unique connection requirements; therefore, we provide a wide variety of connection types and sizes, ensuring that our Pad-Eye Handling Subs can be tailored to meet the specific needs of your project.
Features & Benefits
• Durable Construction: Made from high-quality alloy steel for maximum strength and reliability.
• Certified Load Ratings: Certified working load limits (WLLs) ranging from 3 to over 125 tons, ensuring dependable performance.
• API-Compliant Connections: Features industry-standard threaded connections for compatibility with various drilling equipment.
• Enhanced Efficiency: Reduces handling time and risks, resulting in less downtime during operations.
• Equipment Protection: Prevents damage to valuable downhole tools and assemblies during lifting and handling.
• Eliminates Lifting Caps: Reduces complexity and risk by removing the need for separate lifting caps.
• Operational Flexibility: Allows safe and easy lifting of a variety of tools that lack standard handling features.
